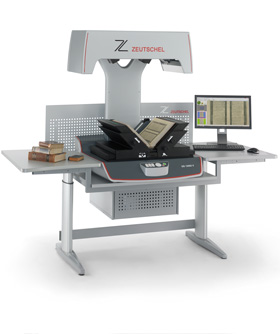

OS 12002 V
The high performance scanner for particularly valuable books.
Product advantages
- max. opening angle 90°
- Automatic work mode: automatic positioning of the book, automatic opening of the glass plate and automatic lowering of the book support plates after scanning, automatic start of scan, electronically controlled book pressure, continuously adjustable in 5 steps for protection of the documents
- gentle book scanning, no contact with the book page
- double-page processing

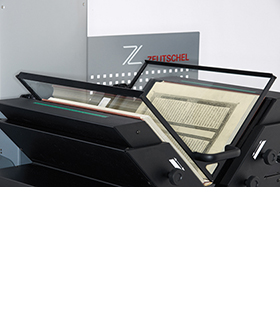

- working without glass
- ROI-scan feature (limitation of scan area)
- higher productivity
- best results without additional post processing
- Perfect Book - 3D scan technology for automatic book detection and perfect book curve correction
- automatic white balance for best and constant color quality
- no UV/IR radiation
- low exposure to light (illumination will only be activated when scanning)
- no reflections with high gloss originals
- ergonomic working position
- excellent cost-performance ratio
Specifications
| Description | overhead tabletop scanner for bound originals |
| Scan area | 600 (2 x 300) x 450 mm (> 2 x DIN A3) |
| Scan mode | Color |
| True color processing | 42 bit color | output 24 bit color, 14 bit gray scale | output 8 bit gray scale, 1 bit b/w | output 1 bit b&w |
| Maximum resolution | 600 ppi |
| Scan speed | 3.8 sec /400 ppi |
| User software | Omniscan 12 / 64 bit, with multi-thread function (optional) |
| Book holder | V-position 90°, adjustable side walls, centre indicator, ergonomic control panel, height-adjustable, adjustable book spine width, integrated trigger bars, can also be operated manually |
| Working Mode | automatic / manual |
| Maximum book thickness | 150 mm with and without glass plate |
| Scanner interface | Gig E |
| Data display | all the standard image formats, for example, TIFF uncompressed, TIFF G4, JPEG, JP2, Multipage TIFF, PDF, Multipage PDF, BMP, PNG, GIF, PCX |
| Operating System | Windows 7, 8.1 and 10 - alternatives on request |
| Accessories (optional) | PC, monitor, lockable scanner table |
| Dimensions | 1023 x 880 x 1025mm |
| Work space | 700 x 720 mm |
| Weight | approx. 130 kg |
| Power requirements | 230 V, 50/60 Hz, 1.1 A, other voltages on request |
