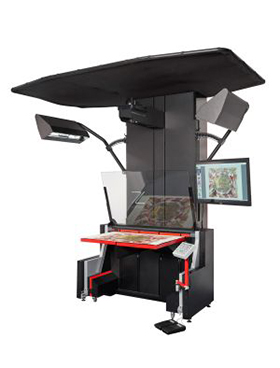

ScanStudio A1
The all-in-one system for the digitization projects of libraries, archives and museums.
Product advantages
- Modular, universal system for all digitization tasks
- Roll-in/Roll-out stand unit for easy interchanging of all document tables (see Technical Data)
- A1 book cradle OT 180 H 35 with black book plates and self-opening glass-plate (max. book thickness 350 mm)
- Interchangeable digital backs and lenses
- Copyboard systems for a wide range of documents
- Highest productivity – shortest scanning cycles
- Reliable results through predefined workflows
- Automatic functions – autofocus, automatic exposure control,
- color profiles and automatic scanning
- Zeutschel ErgoLED LED lighting system for shadow- and reflection-free results
- OS Basic Software and software for book curve correction for image optimization
Specifications
| SENSOR | |
| Sensors | 100 MP / 150 MP |
| Technology | CMOS |
| Sensor format | medium format 4,5 x 6 cm |
| Data depth | 16 bit |
| Dyn range in f-stops | 14 |
| Dyn range in opt Density | 4,2 |
| max opt. Resolution | 100 MP up to 9.000 dpi, 150 MP up to 10.000 dpi |
| CAMERA TYPE | |
| Camera type | Zeutschel ScanStudio Camera |
| Shutter | rotary shutter MTBF > 3 Mio |
| Shutter | 1/50 - 1 sec.; ∞ |
| Lens range |
60-240 mm |
| Lens detection | optical, automatic |
| REPROSTAND | |
| Dimensions | height 2400 mm x depth 800 mm x width 1200 mm |
| Working height | 700-900mm* pre adjustable |
| Autofocus | yes |
| environmental light contol | glare and stray light control |
|
COPYBOARD SYSTEMS |
|
| Scanner table OT 180 H 35 |
with self-opening glass-plate with adjustable opening angle for max. book thickness of 350 mm |
| Scanner table OT 180 H 50 | with selp-opening glass-plate with adjustable opening angle and changeoable book plates for max. book thickness of 500 mm |
| Book cradle OT 90 | for careful handling of books with a max. book thickness of 240 mm |

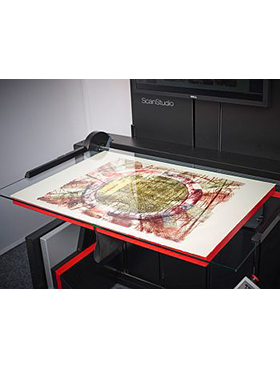

| Top light table A1 | for opaque originals (e.g. technical drawings, geographic maps) with glass-plate. Max. size of original, opened: 1070 x 675 mm |
| Vacuum table | adjustbale format zones up to A2+ |
| Transmissive Light source | max. format up to A2, stand alone or with Advanced Plus cradle. Adjustable illumination strength, adjustable light spectrum |

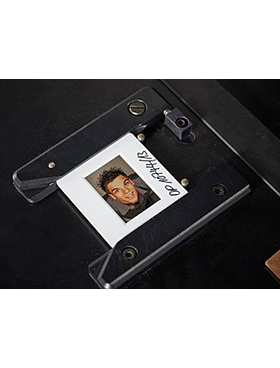

| Film Carrier | for film formats 35 mm up to 8x10“ |
| Glas negative carrier | with 4-way masking |
| A1 Extension Kit | for OT 180 H35; OT180 H50, OT 90 book cadle |
| ILLUMINATION | |
| LED | full spectral LED |
| illuminance | adjustable 500-4500 lx |
| ErgoLED | ergonomic design, non dazzling, soft dimm automatic |
| PERFORMANCE | |
| Scanning Time | 50 ms (typical) |
| Cycle time | 3.4-6 sec (100 MP), 7-9 sec (150 MP), typical values |
| STANDARDS | |
| ISO 19264 | Quality level > A |
| FADGI |
Quality level > 4 Star **** (A2) |
| Metamorfoze | Quality level > Full Metamorfoze |
| ELECTRICAL & CONFORMITIES | |
| primary power | 110-240 V, 50/60 HZ, 480 VA |
| Electrical Safety | 60950-3; IEC 62368-1:2014 |
| EMC | EN55022; EN55024; EN61000-3-2; EN61000-3-3; US,CAN: FCC, Part 15 class B, ICES-003 Class B |
| Lamp System | According to EN 62471 „Photobiological safety of lamps and lamp systems“ |
| SOFTWARE | |
| Operating system | WIN 10 / 64 Bit |
| Software | Omniscan 12.12 |
| Color management | according to ICC |
| Book curve correction | optional |
