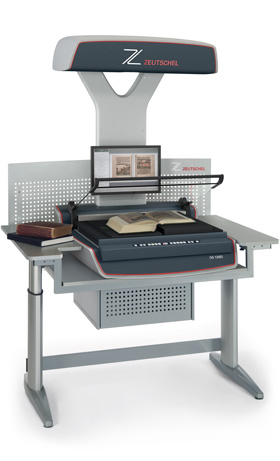

OS 12002 Advanced Plus
Future-proof digitization.
Product advantages
- Automatic work mode: automatic positioning of the book, automatic opening of the glass plate and automatic lowering of the book support plates after scanning, automatic start of scan, electronically controlled book pressure, continuously adjustable in 5 steps for protection of the documents
- Book cradle with glass plate, 90° opening, automatic opening of glass plate after scanning
- independent from ambient light
- High speed (scan time only 1 sec. per scan)
- Low exposure to light (illumination will only be activated when scanning)
- No dazzling, no heat load
- No UV radiation
- Best results
- High productivity
- No reflections with high-gloss originals
- Excellent cost-performance ratio
Specifications
Description | overhead tabletop scanner for books, newspapers and large-format documents (certificates, drawings, maps) |
Scan area | 622 x 460 mm (> DIN A2) |
Scan mode | Color; 4 channels, RGB- Color and Grey in total 43200 Pixel |
True color processing | 42 bit color | output 24 bit color, 14 bit gray scale | output 8 bit gray scale, 1 bit b/w | output 1 bit b&w |
Maximum resolution | 600 ppi |
Scan speed | 3.8 sec /400 ppi |
Auto focus | approx. 50 mm |
User software | Omniscan 12 / 64 bit, with multi-thread function (optional) |
Book holder | motorized book support plates, self-opening glass plate with adjustable opening angle, adjustable up to 90°. Intelligent and increased control panel with programmable keys |
Working Mode | automatic / manual |
Maximum book thickness | 150 mm with glass plate, 200 m without glass plate |
Scanner interface | Gig E |
Data display | all the standard image formats, for example, TIFF uncompressed, TIFF G4, JPEG, JP2, Multipage TIFF, PDF, Multipage PDF, BMP, PNG, GIF, PCX |
Operating System | Windows 7, 8.1 and 10 - alternatives on request |
Accessories (optional) | PC, monitor, lockable scanner table, different bookends |
Dimensions | (w x d x h) 955 x 880 x 1362 mm |
Work space | (w x d) 700 x 720 mm |
Weight | approx. 90 kg |
Power Requirement | 230 V, 50/60 Hz, 1.1 A, other voltages on request |
