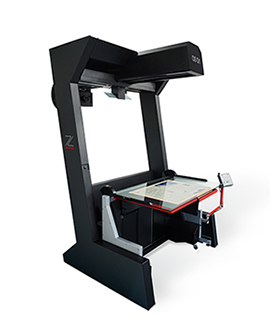

OS Q1
The new dimension of book scanning for A1 formats.
» more information
Product advantages
- RGB line sensor (3-channel, CMOS technology)
- Resolution of up to 600 ppi
- Internal image processing with 96 bit depth
- Data output in 48 bit/24 bit color and 16 bit/8 bit degree
- True RGB capture on each pixel (no color interpolation)
- Color rendering index of LED lighting
- True parallel scanning
- Camera link interface for fastest image transfer
- Optical zoom
- Variable lighting times and aperture settings
- Imaging systems for a wide range of formats
- OmniScan software with 48 bit data output
- Focused line lighting for glare-free operation
- Fastest scanning speed
- Perfect Book – 3D scan technology for perfect book fold correction
- Parallel scanning and saving process based on 64 bit technology and multi-threading
- Scanning in both directions, forwards and backwards
- High productivity based on ROI scan function (limitation of the area to be scanned)
- Color rendering corresponds to the original
- No UV/IR radiation
- No reflections with high-shine originals
- Ergonomic work method with or without glass plate
- Fulfills ISO 19264 / Quality Level A, Metamorfoze Full and FADGI 4 Star
Specifications
Camera Sensor | RGB line sensor (3-channel, CMOS technology) |
Resolution | MeanMTF10 at 600 ppi: 9 LP/mm (with max. zoom-in up to 12 LP/mm) |
Recording system | wear-free mechanical shutter, variable exposure time, electronically adjustable shutter; automatic white and black balance, variable depth of focus |
Max. original size | >DIN A1, depending on book cradle |
Max. book thickness | with book cradle OT 180 H 35 XL – 35 cm with book cradle OT 180 H 50 XL – 50 cm |
Scan unit | CMOS RGB sensor |
Scan mode | 96 bit color |
Scanning Speed | (from start to end of scanning process) in A1 200 ppi – 3.5 sec. 400 ppi – 5.9 sec. 600 ppi – 7.6 sec. |
Scanner interface | Camera Link |
Zoom | A1 – A2 |
Resolution | 100 – 600 ppi |
Electrical data/safety | |
Voltage | 110 – 240 V |
Frequency | 50 – 60 Hz |
Max. Consumption |
440 W |
Safety inspections / |
- Authorization in accordance with the IEC agreement (international authorization for the safety of IT products – includes EMC, electrical safety, device safety for CE, UL, ETL, CSA) - LEDs tested in accordance with: IEC 62471:2006 “Photobiological safety of lamps and lamp systems” |
Dimensions | |
Width | 1370 mm / 53.93" |
Depth | scanner including copy board system - 2200 mm / 78.74" |
Height | 2144 mm / 84.40" |

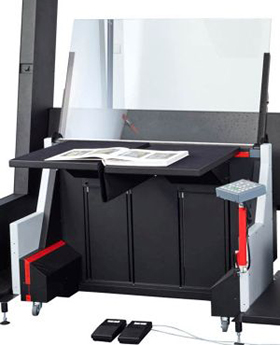

Copy board system | OT 180 H50 XL, OT 180 H35 XL, OT 180 H, OT 180, AT 1, OT 90, vacuum table |
Accessories for copy board systems |
Kit 90°, book holder 110° – 140° |
Recommended working conditions | |
Temperature range | 18 – 35 °C |
Relative air humidity, |
80 % |
Operating System | Windows 10 64 bit |
Capturing Software | min. OmniScan OS 12.12 64 bit |
Technical changes reserved
