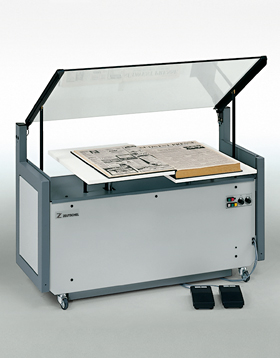

OT 180 H / OT 180 H 90°

Motorised book cradle with self-opening glass plate

Product advantages



  • Copyboard system with book cradle for careful handling of books with self-opening glass plate
  • the book is opened 180° and pressed against the glass plate from below
  • easy turning of large pages, (restriction for lowering for small books)
  • continuously adjustable contact pressure

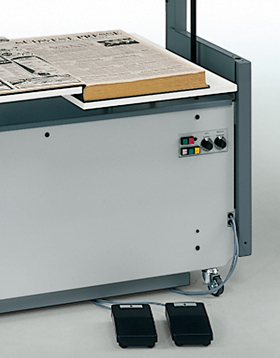

  • sufficient leg room for fast and comfortable operation using foot pedal
  • automatic lowering after capture

OT 180 H 90°

Book cradle with swivel-mounted glass plate for scanning without glass plate (larger opening angle).

Optional with:



  • automatic GP 0°/90° detection on PC
  • 71mm increase to 860mm
  • USB interface integrated into book cradle

Specifications

Max. booksize, opened 1025 x 620 mm,
(special version: 1025 x 700 mm)
Max. book weight 20 kg
Max. book thickness 240 mm
Working Level 800 mm
Electric requirement

230 V, 50/60 Hz, 150W,
other voltages on request
Width x Depth x Height 1180 x 723 x 800 mm
