OT 180 DIN A0

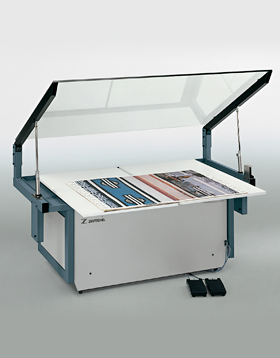

Motorised book cradle with self-opening glass plate
Product advantages
- copyboard system with book cradle for careful handling of books
- self-opening glass plate
- the book is opened 180° and pressed against the glass plate from below
- continuously adjustable contact pressure
- easy turning of large pages, sufficient leg room for fast and comfortable operation using foot pedal

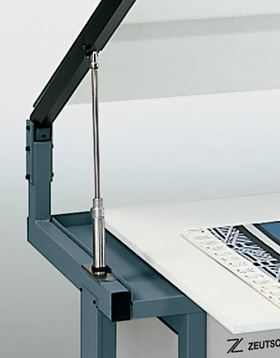

- automatic lowering after capture, opening angle of glass plate 48°
Specifications
| Max. book size, opened | 1350 x 960 mm |
| Max. book weight | 22 kg |
| Max. book thickness | 220 mm |
| Working level | 860 mm |
| Power supply | 230 V, 50/60 Hz, 150W, other voltages on request |
| Width x Depth x Height | 1520 x 1060 x 860 mm |
