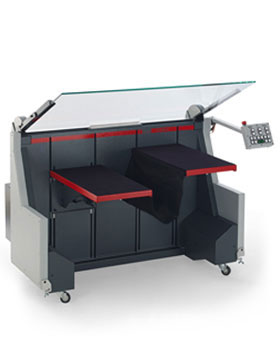

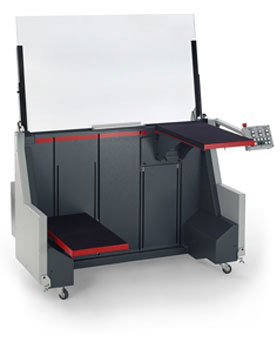

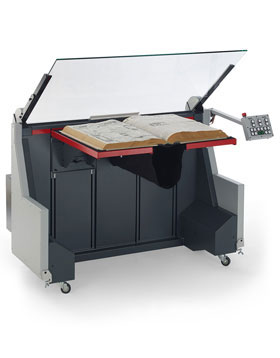

OT 180 H 50 XL
Copyboard system with automatic work mode.
Product advantages
- copyboard system with book cradle for careful handling of books
- self-opening glass plate with adjustable opening angle, adjustable up to 115°
- exchangeable book plates
- sufficient leg room for comfortable and economically correct working position
- 2 foot pedal for comfortable opening and closing of the glass plate and for raising and lowering the book cradle
- ergonomic positioning of the control panel (swivel arm)
- constant contact pressure continuously adjustable, independent of the book weight
- sliding, self-balancing book support plates
- easy turning of large pages, limitation for lowering for small books
- semi-automatic working
- parallel application and lowering of the books to avoid damage to the sides when opening the glass plate
- automatic lowering after capture
- thanks to open sides, the original document can be larger than the scanning surface
Specifications
Max. book size | 1025 x 610 mm |
Max. book weight | 40 kg |
Max. book thicknes | 500 mm |
Working level | 800 mm |
Electr. connection: | 230V, 50/60 Hz, 500 W, other voltages on request |
Dimensions (W x D x H): |
1180 x 723 x 800 mm |
