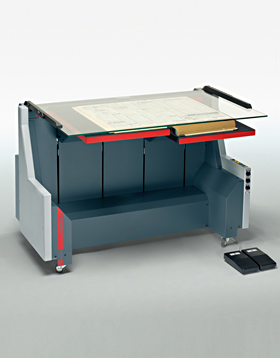

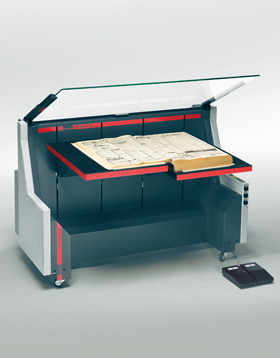

OT 180 H 35 XL
Motorised book cradle with self-opening glass plate
Product advantages
- copyboard system with book cradle for careful handling of books
- self-opening glass plate with adjustable opening angle, adjustable up to 115°
- sufficient leg room for comfortable and economically correct working position

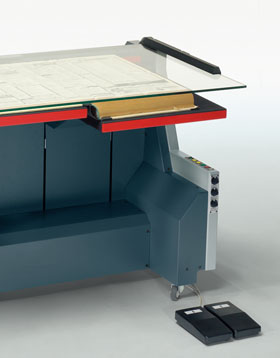

- 2 foot pedal for comfortable opening and closing of the glass plate and for raising and lowering the book cradle
- ergonomic positioning of the control panel (swivel arm)
- constant contact pressure continuously adjustable, independent of the book weight
- sliding, self-balancing book support plates
- easy turning of large pages, limitation for lowering for small books
- semi-automatic working
- parallel application and lowering of the books to avoid damage to the sides when opening the glass plate
- automatic lowering after capture
- thanks to open sides, the original document can be larger than the scanning surface
Specifications
| Max. book size | 1025 x 610 mm (special model: 1025 x 700 mm) |
| Max. book weight | 40 kg |
| Max. book thicknes | 350 mm |
| Working level | 800 mm |
| Electr. connection: | 230V, 50/60 Hz, 500 W |
| Dimensions | 1180 (B) x 780 (T) x 800 (H) mm |
