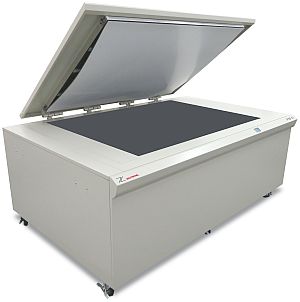

DIN A0 Flatbed Scanner FB0
Fast and high quality color CCD scan technology
Product advantages
- Single CCD Sensor, Single Camera System, no stitching
- High speed scan mode – approx. 17 sec. at 300 dpi DIN A 0
- resolution continuously adjustable from 50 dpi to 2000 dpi
- easy and simple scanning with highest accuracy
- The scanner is equipped with Dual White LED – for bi-directional scanning
- Adjustable light intensity best scan results without shadows
- Max. scan area 1270 mm × 920 mm
- Gigabit Ethernet interface connects with PCs
- Foot switch as an option
Additional optional software
Aupier-GigaStitch
- Professional Image Editing & Stitching software
KB-Copy Ver2
-Easy Scan2File and Scan2Copy software
including Zoom option
Specifications
| Scanner Type | DIN A0 Flatbed Color Scanner |
| Light source | Dual White LED for bi-directional scanning |
| Optical system |
High quality optical system, single sensor RGB 3-line CCD, optical resolution 1000 dpi / DIN A0 |
| Document size | 1270 x 920 mm (fully covering DIN A0 size) |
| Resolution | continuously adjustable from 50 dpi to 2000 dpi |
|
Scan speed |
approx. 17 seconds at 300 dpi / high-speed mode (DIN A0 size) |
| Scan accuracy | +/- 0,1%, +/- 1 pixel |
| Scan mode | 48 bits |
| Data output | 24 / 36 bit color, 16 / 8 bit gray, 1 bit black and white |
| Software | including software Scan2File |
| Interface | Gigabit Ethernet interface |
| Dimensions | 1,880 x 1,240 x 810 mm (w x d x h) |
| Weight | 280 kg |
| Power supply | AC 100-240 V 50/60 Hz |
| Host Platform | Windows 8 (64 Bit) / Windows 7 (64 Bit) / Windows 10 (64 Bit) |
