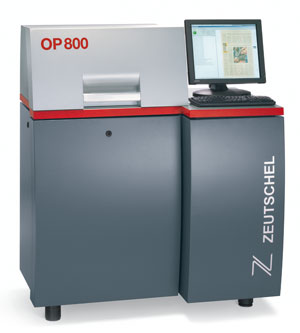

Archive Writer OP 800
The long-term preservation solution for all digital files.
Product advantages
- Maximum 132 Mio. Pixel optical resolution
- For all standard files (for example tiff, jpeg, jp2, pdf)
- High resolution microfilm b/w, grayscale (halftone) or color
- Color enhancement via integrated ICC conform color managment
- Highest productivity
- Wide range of image processing tools for perfect file conversion in batch mode
- Easy operation
- Film capacity up to 600 m
- 16/35 rollfilm, landscape and portrait
- Automatic imprinting of metadata and film index
Specifications
| Description | with the ArchiveWriter OP 800 HR all digital data can be archived easy and fast on microfilm for long term preservation |
| Applications | preservation of all native digital data (CAD, e-Mail, Word, Excel, etc.) and digitized data (scanned documents, images etc.) |
| Formats | all standard file-formats in b&w, grey scale and color, e.g. TIFF, TIFF LZW, JPG, JP2, BMP, PDF, PDF A, JPM, GIF etc. |
| Microfilm | roll film b/w, half tone and color, 16 & 35 mm on reels 30.5 m, 60 m, 305 m or 600 m |
| Maximum resolution | 132.7 megapixel |
| For 35 mm roll film | 6815 dpi |
| For 16 mm roll film | 16832 dpi |
| Max. film mask 35 mm | 32.2 x 57 mm (standard mask 32 x 45 mm) |
| Max. film mask 16 mm | 13.0 x 23.1 mm (standard mask 12.5 x 18 mm) |
| Film mask and film step | continuously adjustable |
| Recording formats | full-frame, duplex, duo and multi-frame |
| Image processing | integrated ICC conform color management |
| Software | Zeutschel Software OmniPlot |
| Operating system | Windows 10 IoT (64 bit) |
| Dimensions (w x d x h) |
1280 x 806 x 1498 mm |
| Accessories | PC and monitor |
